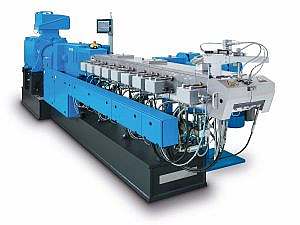

Twin Screw Extruder: Advanced Polymer Processing Machine
The twin screw extruder stands as one of the most widely used machines in the polymer industry for processing diverse materials. It features two screws—either parallel or conical—that rotate inside a heated barrel. These screws either rotate in the same direction (co-rotating) or in opposite directions (counter-rotating), depending on the application.
How Does a Twin Screw Extruder Work?
You feed raw materials into the extruder through a hopper. Then, the rotating screws transport the material along the barrel. The screws compress, shear, and heat the polymer to a controlled temperature, transforming it into a homogeneous melt. Afterward, the extruder forces this molten mixture through a die to create the final product shape, which cools and solidifies.
Thanks to the twin screw design, the extruder provides superior mixing and kneading action. This feature enhances plasticization and homogenization of polymers and additives.
Types of Twin Screw Extruders
Twin screw extruders come in various configurations to meet different processing needs:
-
Parallel Twin Screws: Two screws rotate side-by-side inside the barrel.
-
Conical Twin Screws: Screws taper and counter-rotate, ideal for specialized applications.
Additionally, screws can be:
-
Intermeshing: The flights of screws engage each other when the centerline distance is less than the screw diameter.
-
Non-Intermeshing: Screws rotate separately without engagement; here, the centerline distance equals the screw diameter.
In non-intermeshing designs, one screw often extends longer to improve material pumping toward the die.
Corotating vs. Counter-Rotating Screws
-
Corotating Twin Screw Extruders rotate in the same direction. They deliver high shear and excellent mixing, making them suitable for:
-
Compounding polymers with additives such as colorants, fillers, flame retardants, and stabilizers.
-
Devolatilization to remove solvents and volatiles.
-
Reactive extrusion, where chemical reactions occur inside the extruder.
-
-
Counter-Rotating Twin Screw Extruders rotate in opposite directions. They provide lower shear but better pressure build-up, so manufacturers commonly use them for:
-
Producing profiles and pipes.
-
Compounding PVC and similar resin systems.
-
Chemical processes such as grafting, polycondensation, controlled cross-linking, and functionalization.
-
Applications of Twin Screw Extruders
Twin screw extruders serve many purposes, including:
-
Sheet and film extrusion with simultaneous compounding.
-
Masterbatch production to ensure uniform additive distribution.
-
Processing complex polymer blends and composites.
By using a twin screw extruder, manufacturers eliminate separate compounding steps, allowing formulation and shaping to occur in a single process.
Extruder Components and Control Systems
A typical twin screw extruder includes:
-
Drive System: A DC motor, gear box, thrust bearing, and cooling systems ensure smooth and reliable operation.
-
Feed Ports: Operators introduce raw materials through the main feed hopper, and additional feed streams can enter at multiple points along the barrel using volumetric or gravimetric feeders.
-
Control Cabinet: It monitors and controls temperature, pressure, screw speed, and other parameters for precise process management.
Summary
In summary, the twin screw extruder offers powerful and flexible polymer processing. Whether you compound materials, perform reactive extrusion, or produce profiles and films, selecting the right twin screw extruder will optimize your production efficiency and product quality.
At Hoodad co., we help you choose and customize the ideal twin screw extruder to match your materials and manufacturing goals.
